Description
Bank steps at Johan DeTurk house.

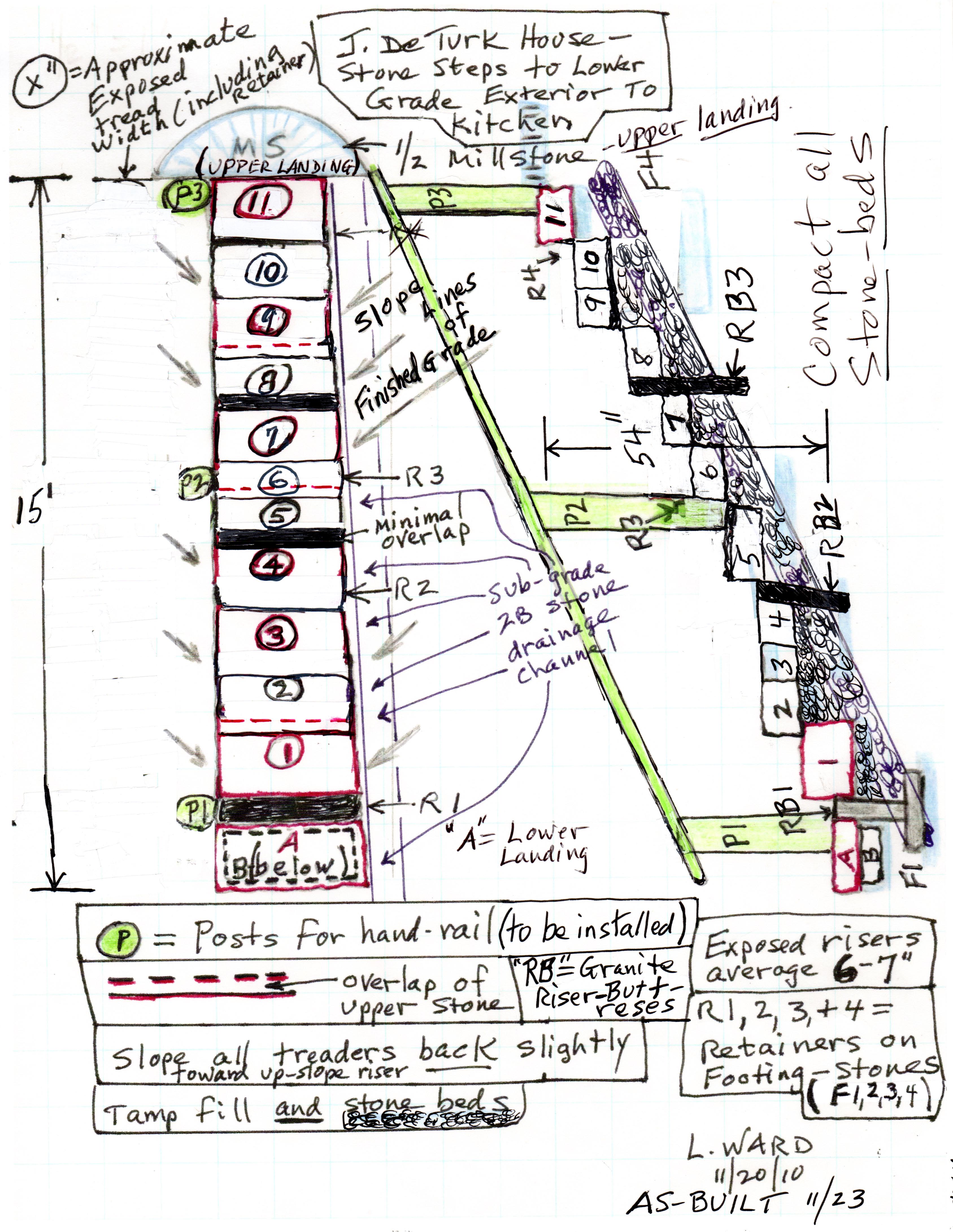

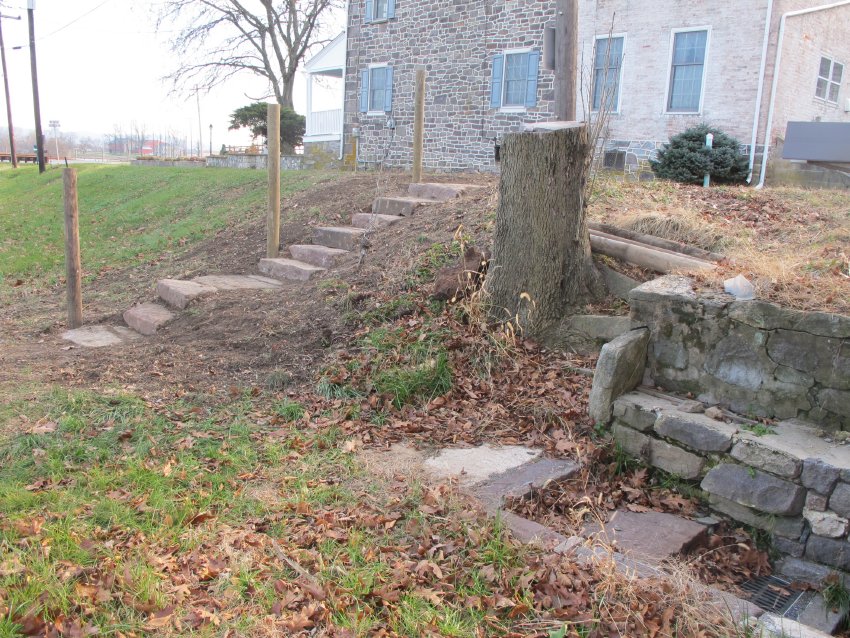

Field-Notes construction plan and elevation view of stone steps from upper lane level down to the Little Manatawny Creek bank level east of the 1767 Johan DeTurk ancillary-dwelling, showing tread-stones, retainers, and risers set on a drainage course of clean 2B stones, and upper and lower landing-stones and their bed-stones. Additional detail includes the hand rail and support posts, with approximate dimensions. The photo shows the as-built stair system prior to fastening the hand-rail to the posts. Photos of the construction sequence and details of these steps appear in record DTHPH56.
L. Ward August, 2020.
Catalog details
- Catalog number
- 1001.01.254
- Alternate number
- DTHFN2
- Accession number
- 1001.01
- Date
- Novmeber, 2010
- Object name
- Field Notes
- Record type
- Archive
- Classification
- Documentary Artifact
