Plan drawings for driveway apron & installation

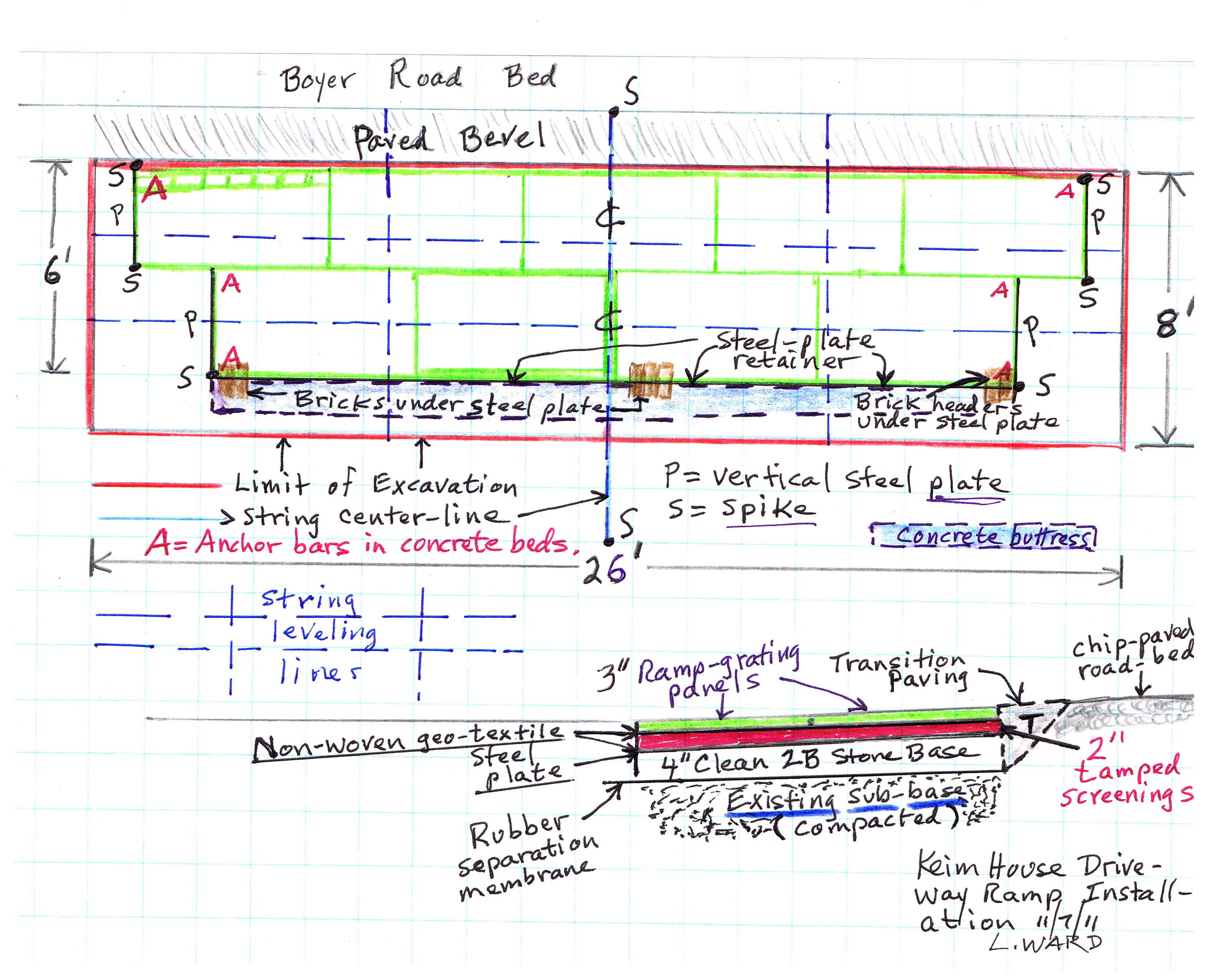

Digital image of 2 plan drawings showing the proposed driveway ramp at the Jacob Keim House. Image #1 shows the plan for the driveway apron itself; the areas outlined in green indicate the industrial-grade “fiberglas” grating providing the rigid ramp and traction from its grid pattern of bars and open cells, which also facilitated positive drainage. Image #2 illustrates installation of the driveway bed, plan view and side-view section sketch, and the base-system and anchorage design of the ramp’s components.
