Description
Captions:
1st dwg: Drain elevation and plan, with details.

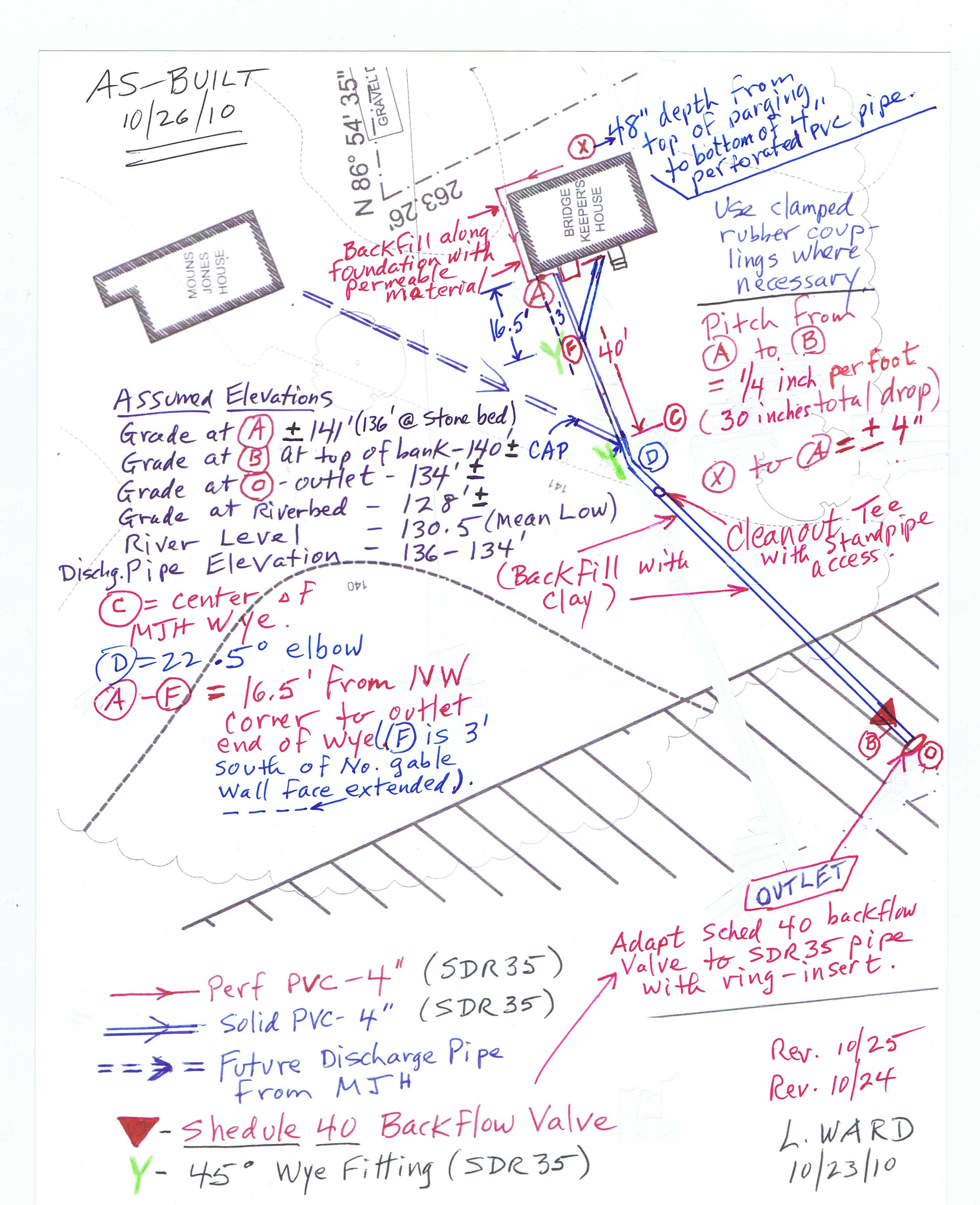

2d dwg: As-built plan of drain pipes from MFH foundation trench to Schuylkill River.

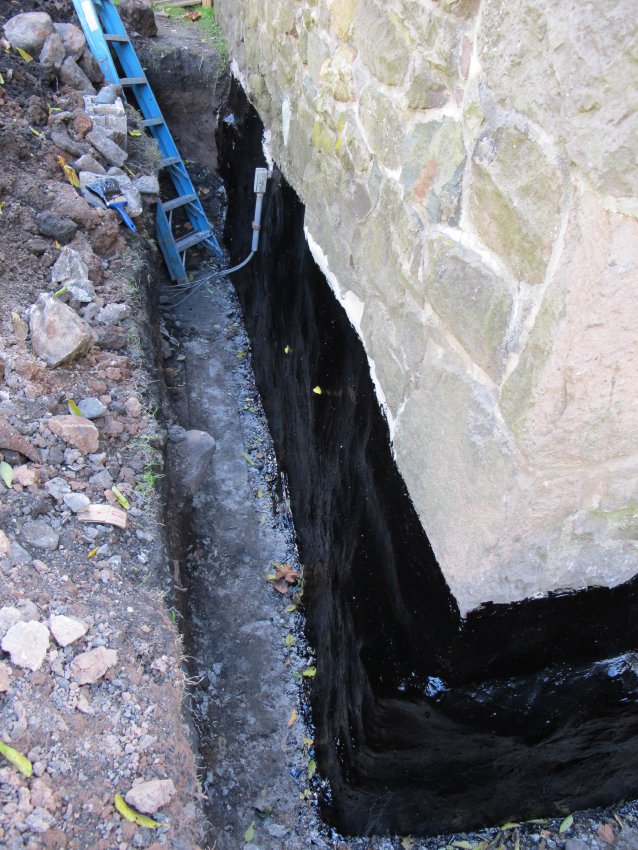

Photo 106: Foundation corner with black impervious coating membrane (Eco-Flex).

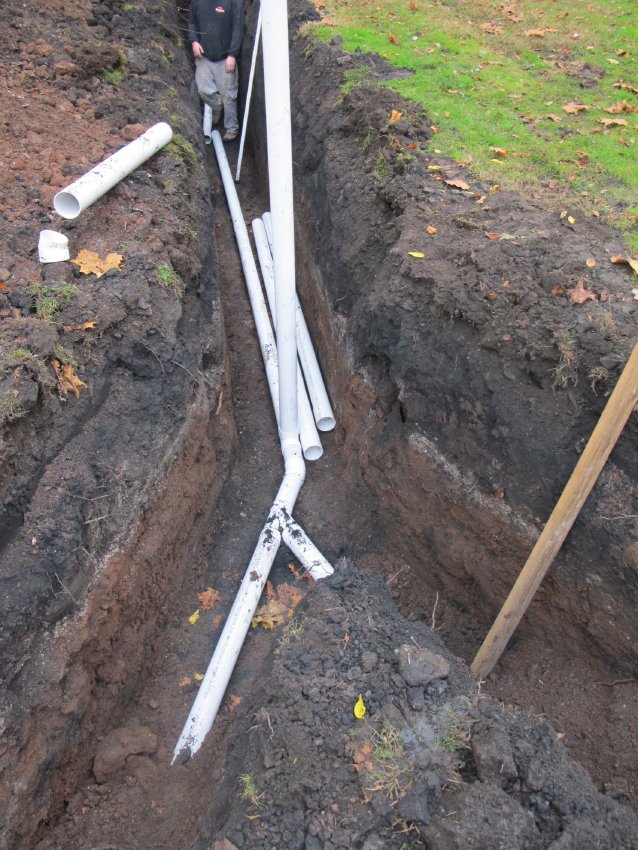

Photo 311: Wye at joinder of Fulp and Mouns Jones drain lines [MJH line not yet installed].

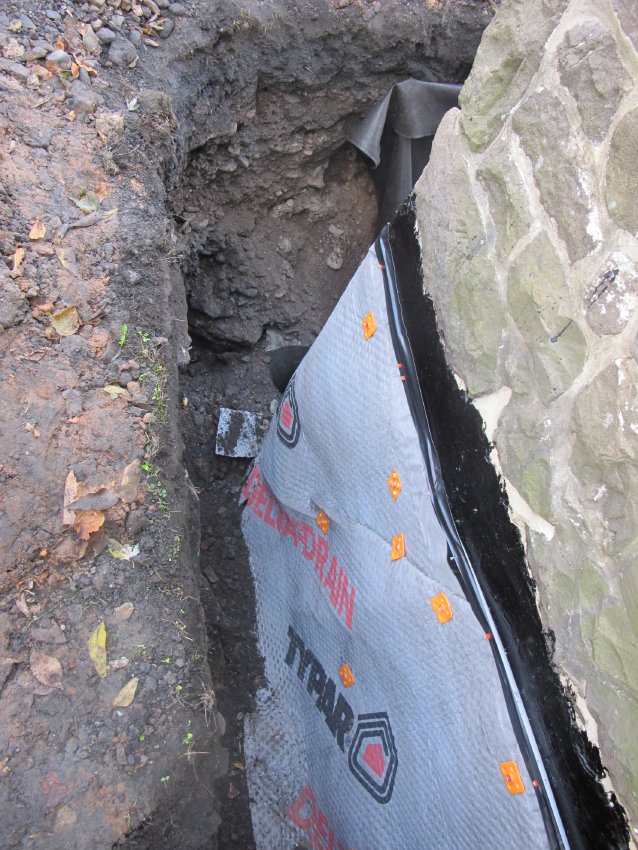

Photo 234: Delta Drain fabric applied over moisture barrier coating to direct water into drain pipe-trench.
