Lot survey plan and scaled drawings-George Douglass House

George Douglass

Images

8: Foundation plan by Barry Stover
8: Foundation plan by Barry Stover

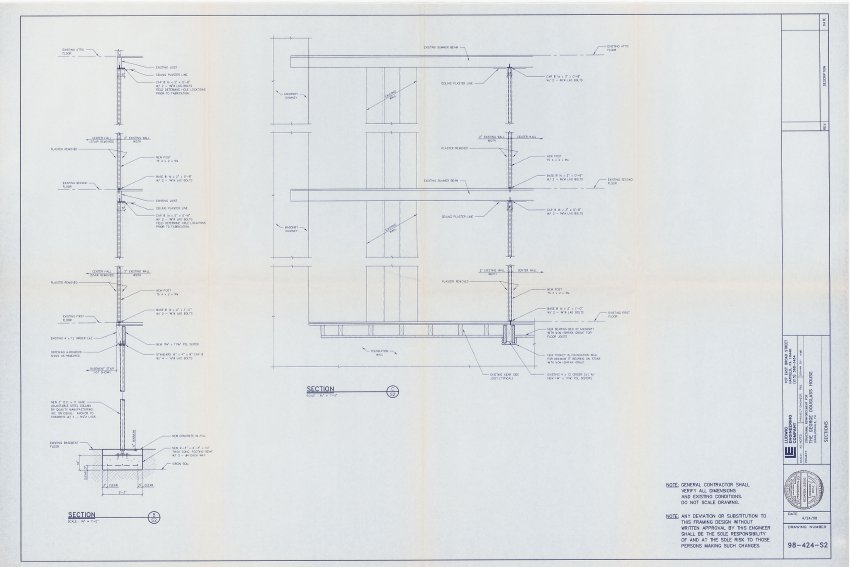

9: Ludwig Engineering structural reinforcement plans
9: Ludwig Engineering structural reinforcement plans

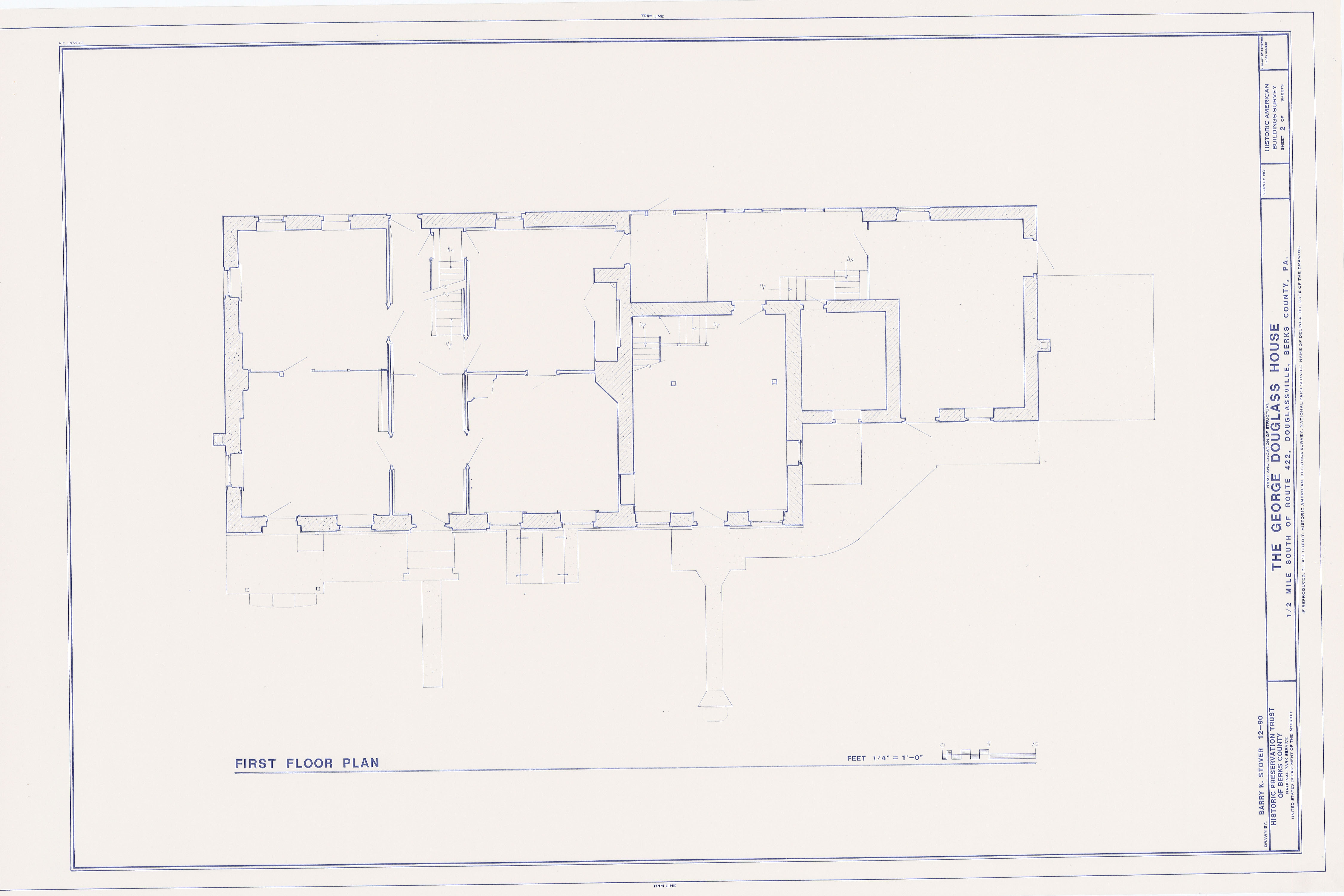

10: first floor plans, 3 structures, by Barry Stover
10: first floor plans, 3 structures, by Barry Stover

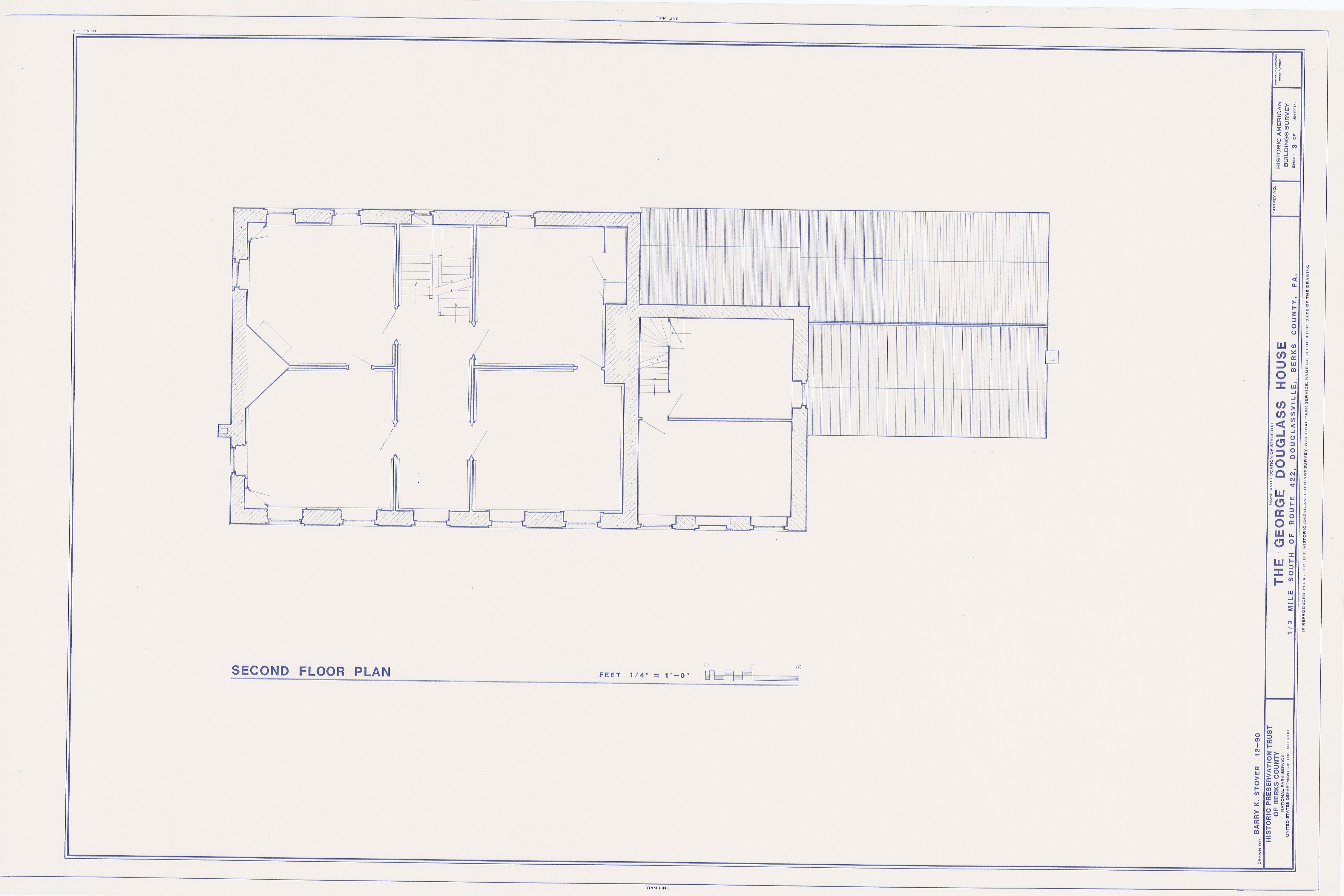

11: HABS second floor plans
11: HABS second floor plans

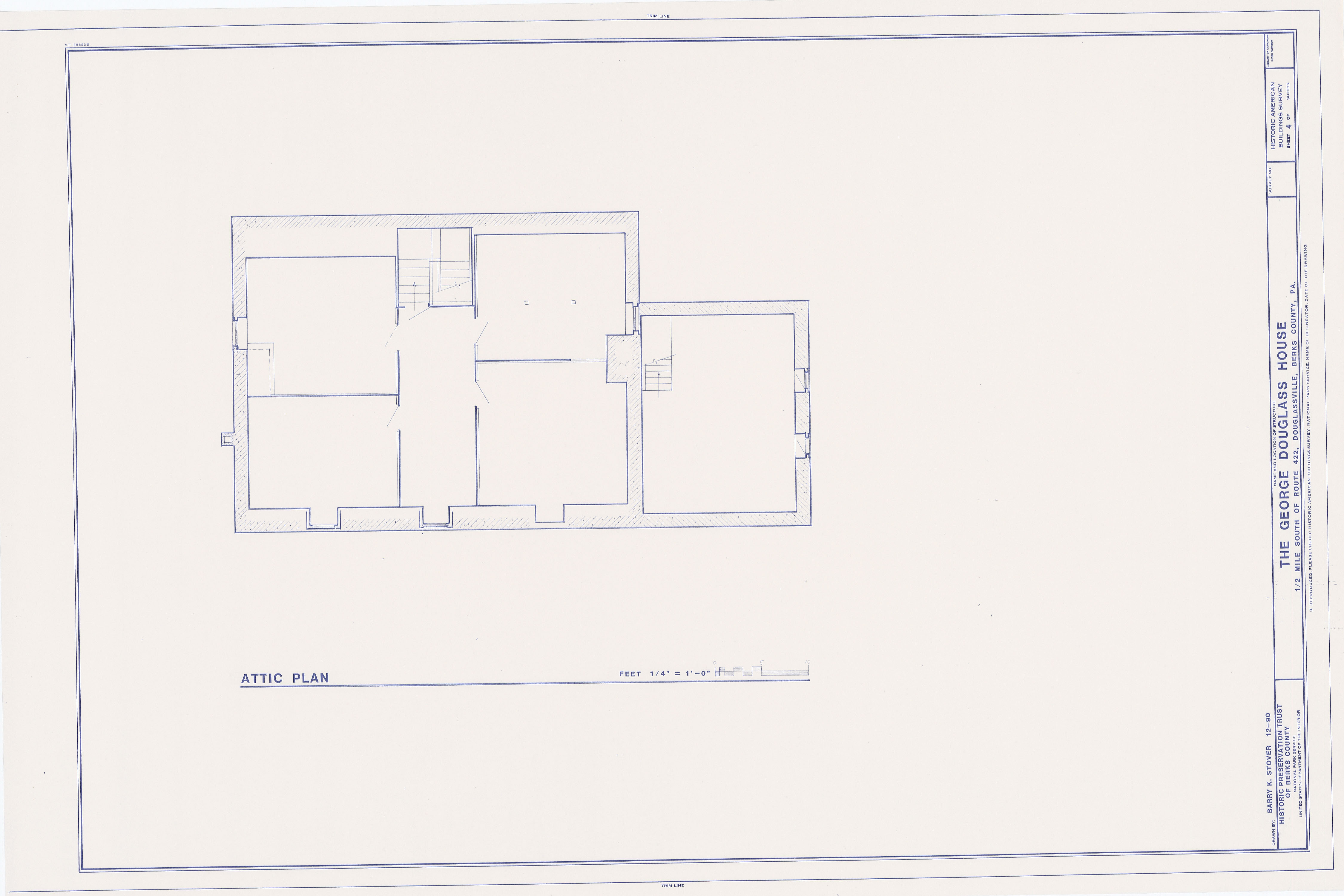

12: HABS attic plans
12: HABS attic plans

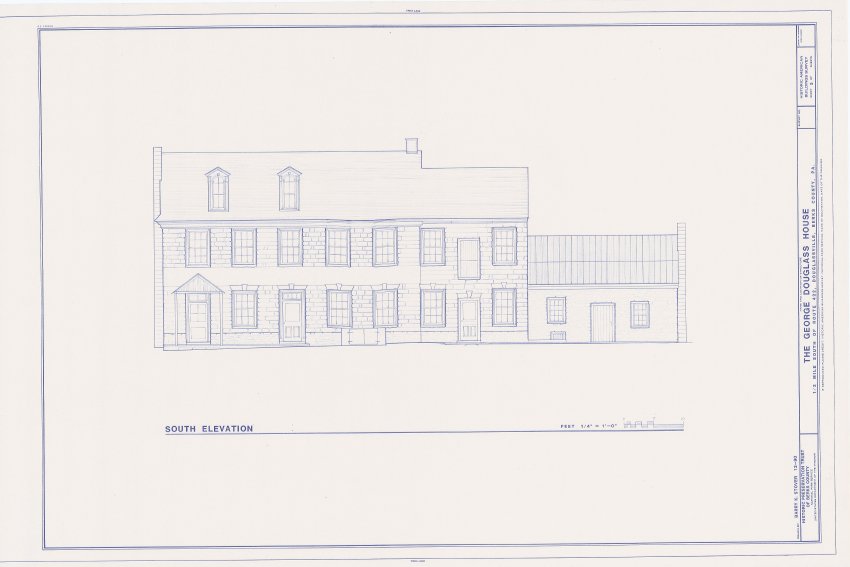

13: HABS SW elevation
13: HABS SW elevation

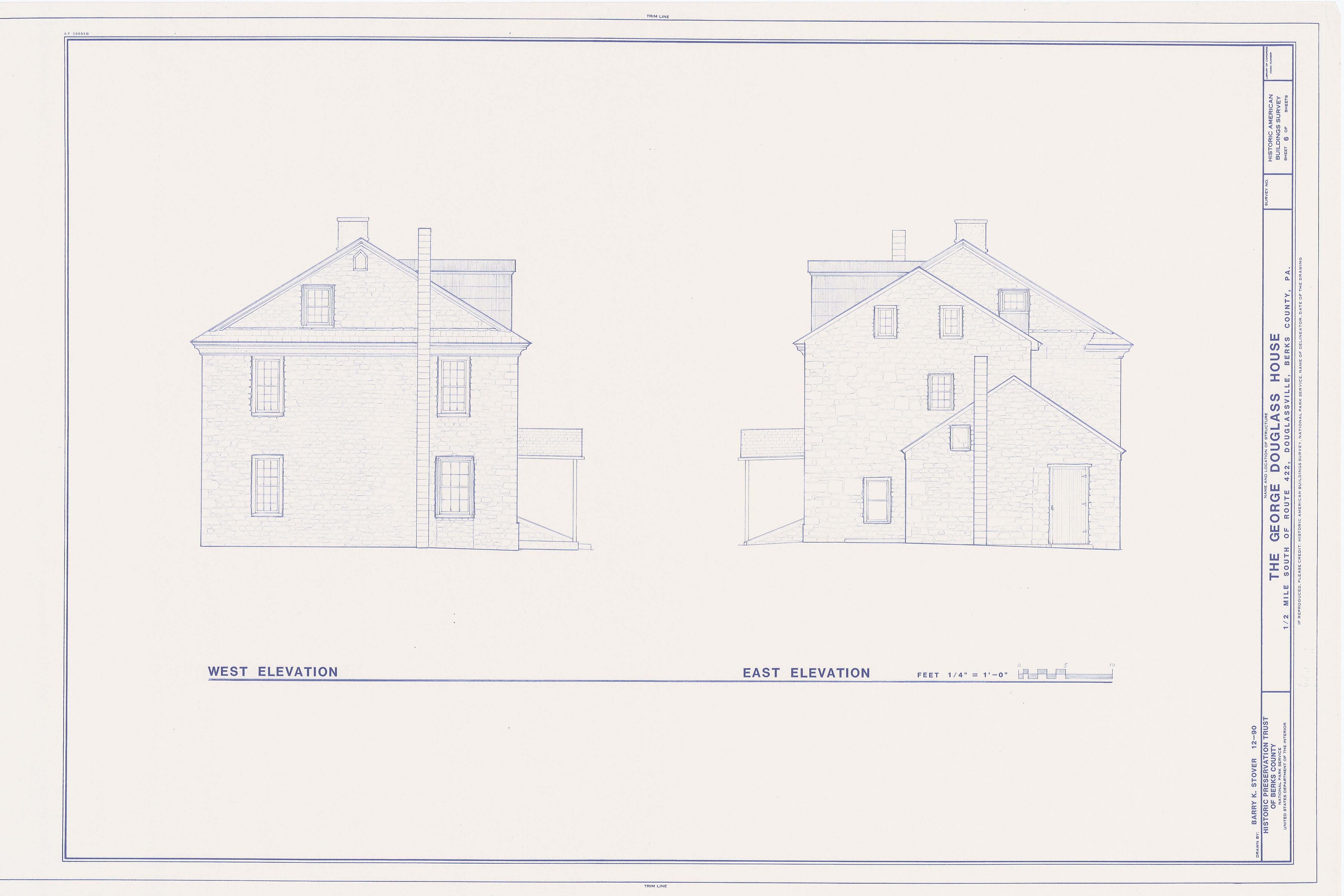

14: HABS E & W elevations
14: HABS E & W elevations

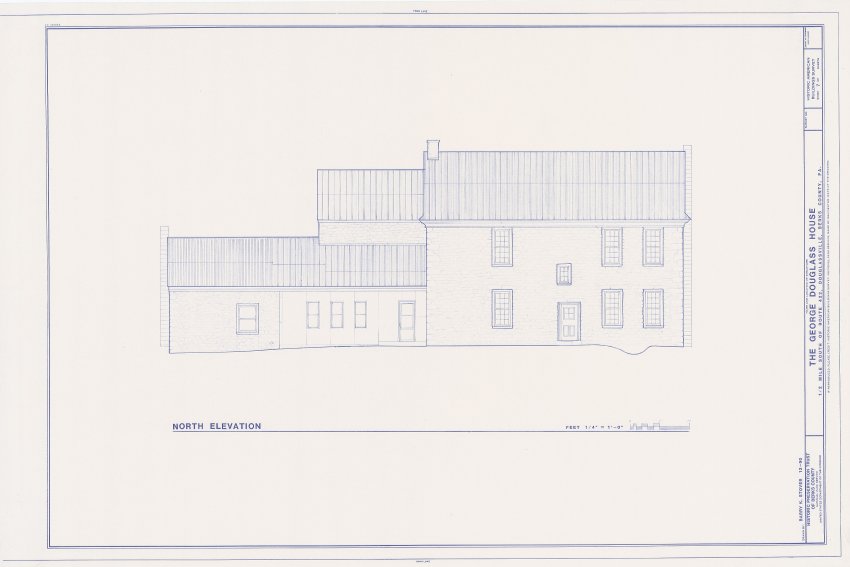

15: HABS No. elevation
15: HABS No. elevation

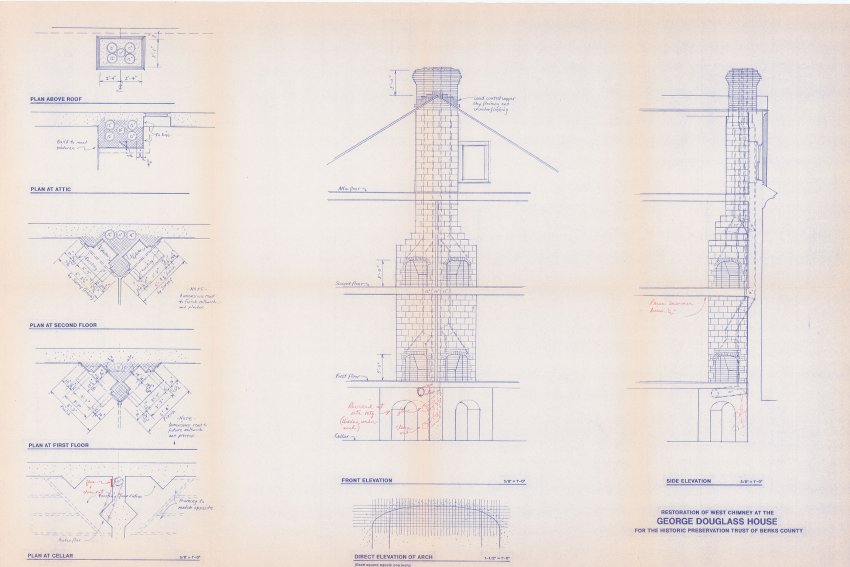

16: Restoration detail-west chimney
16: Restoration detail-west chimney

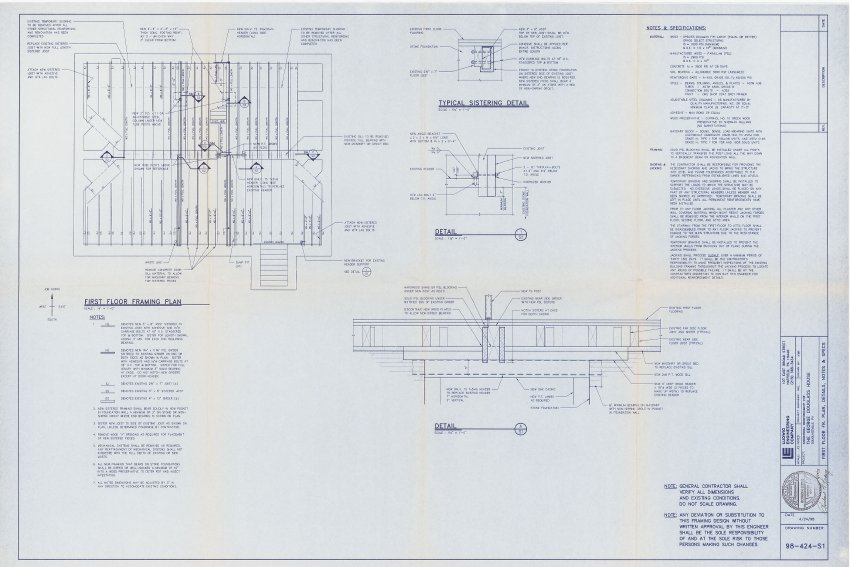

17: Ludwig Engineering first floor plan, Details, Notes, Specs
17: Ludwig Engineering first floor plan, Details, Notes, Specs

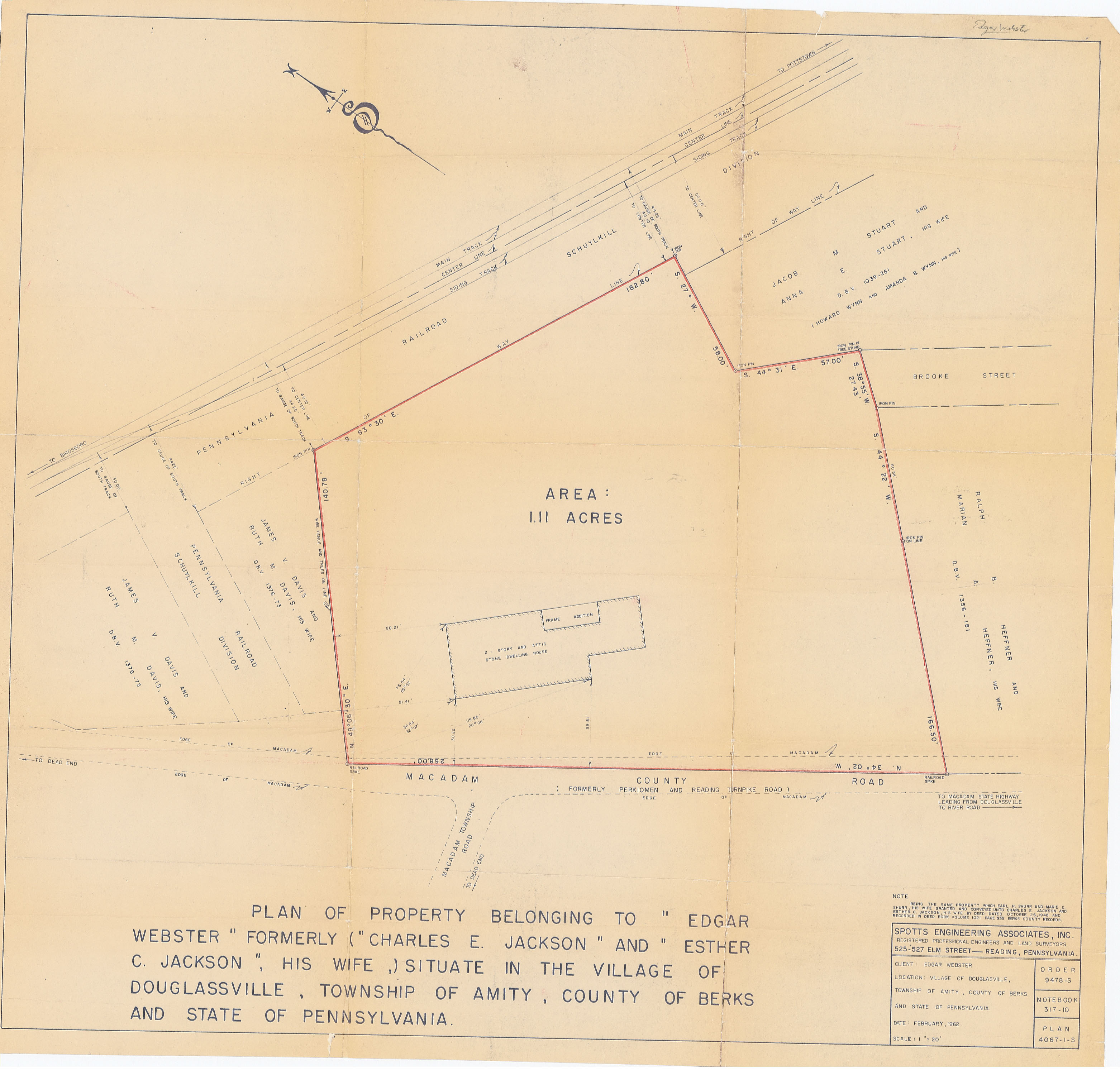

18: Douglass Lot Survey drawing
18: Douglass Lot Survey drawing

Description

All of these drawings were executed prior to the 2017-2021 restoration campaign [see GDHRPT records in these archives for description, scope, details, and photos of the restoration project]. Larry Ward

Catalog details

Catalog number
1006.01.065
Alternate number
GDHDWG6
Accession number
1006.01
Object name
Drawing
Record type
Archive
Classification
Art

People

Barry Stover

Subjects and search terms

planselevationsDTHDWGsectionsstructural plan
